Red Lube Points

These are photos of original Red Paint on lube points on GPW-I00709* 27 FEB 1943. These were taken between Jan and Jun 2008.

During the restoration, most of the lube points were painted red.

Per: TM-9-803 (Technical Manual, 1/4-TON 4x4 TRUCK (WILLYS-OVERLAND MODEL MB and FORD MODEL GPW)
Section VI Lubrication
Paragraph 18, b, (1) on page 37.

Similar Support: TM-9-801 (Technical Manual, TRUCK, 2 1/2-TON, 6 x 6 (GMC CCKW-352 AND 353) AND)
TRUCK, 2 1/2-TON, 6 x 4 (GMC CCKW-3)
Paragraph 37 General Lubrication Instructins, c, (2) on page 11.

Click an Image for a larger Version. Use BACK Arrow to return.


Clutch/Brake Pedal Shaft

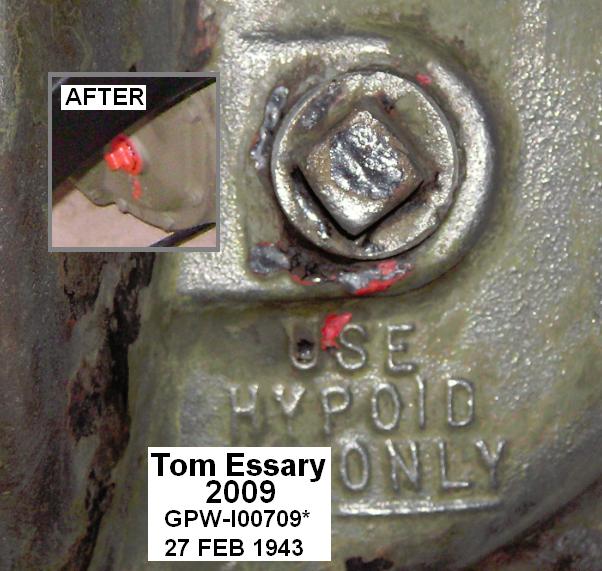

Rear Differential Fill

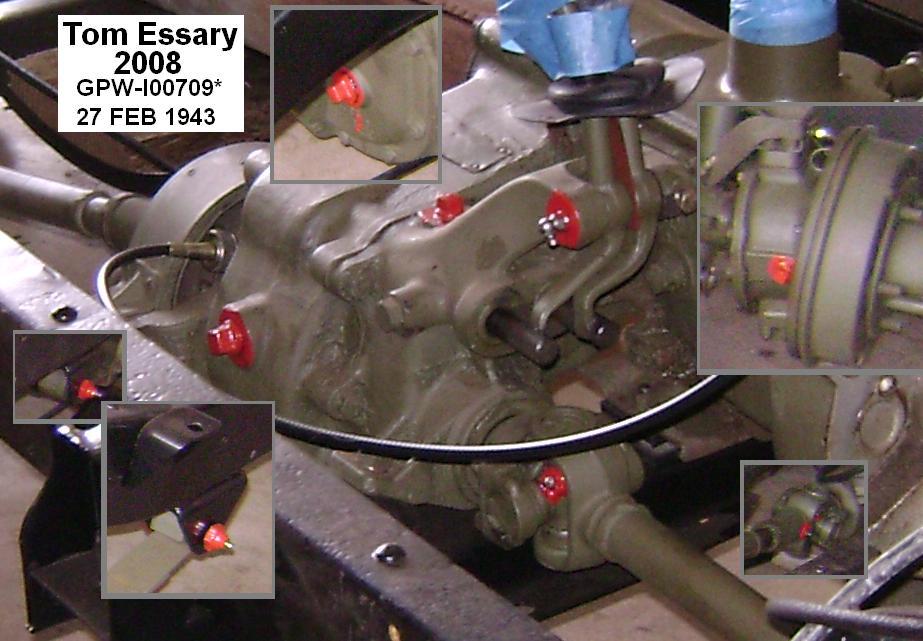

Drive Train After

Propeller Shaft 1

Propeller Shaft 2

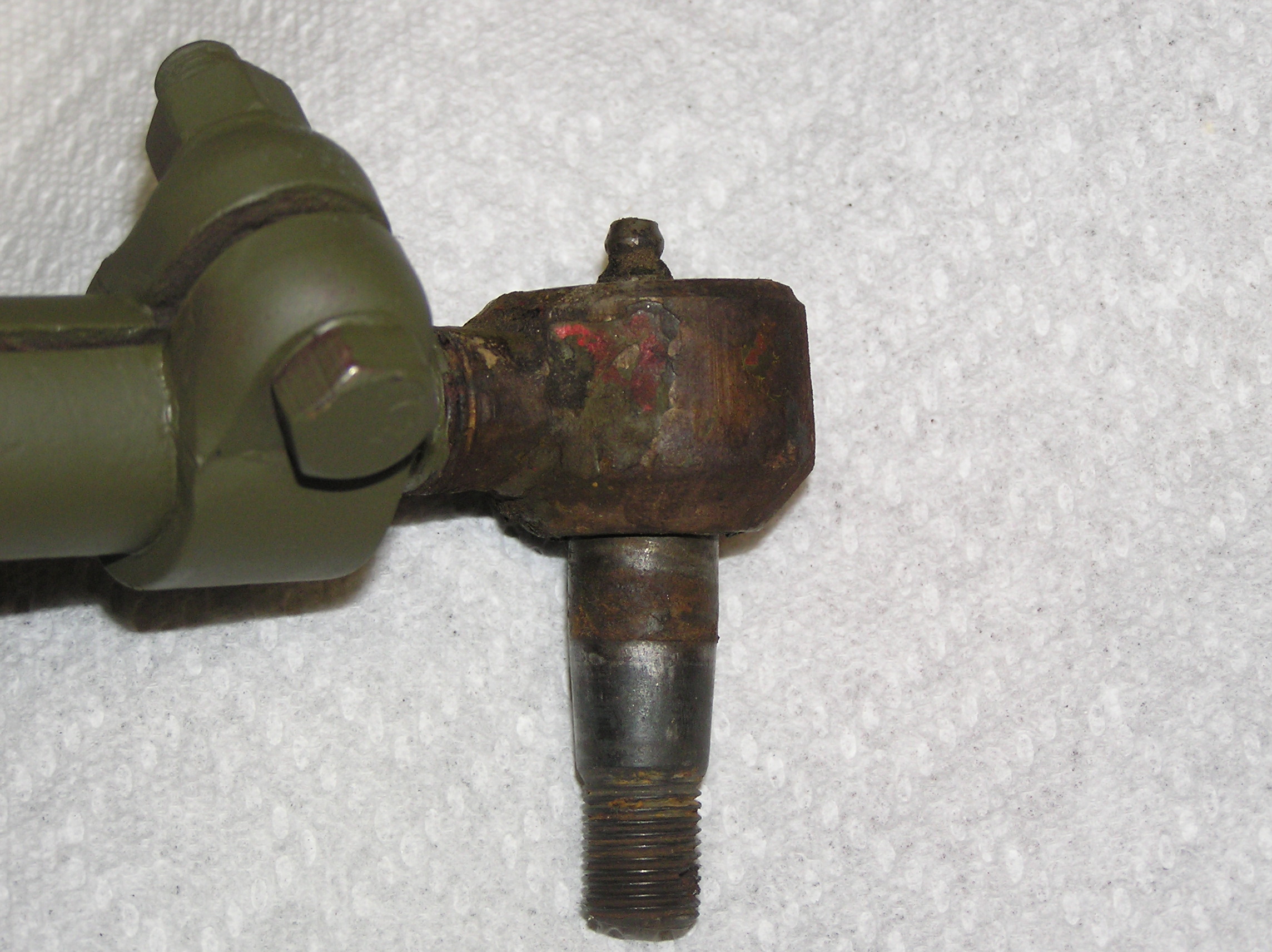

Tie Rod End

Transfer Case Fill
Passenger Side View 1

Transfer Case Fill
Passenger Side View 2
